Understand why a home holds summer heat

Read the room as an energy balance

A room warms when gains exceed the heat it loses or removes over the relevant period. Sunlight, outdoor conditions, occupants and equipment can contribute, while the building stores and releases heat. This is a conceptual balance rather than a prediction of indoor temperature. A large window is one possible influence, not a complete explanation for a particular overheated room.

Record the pattern before choosing a product: which room warms first, which orientation is involved, when discomfort occurs, how overnight conditions change, and what equipment is running. Keep dates, weather and occupancy in the record. Comparing one afternoon with a different-weather afternoon can confuse a weather change with the effect of a new blind or fan.

The overheating diagram represents energy inputs and removal, not measured building loads. It does not calculate a safe temperature, a required cooling capacity or a guarantee that a passive strategy will work. Use the illustration to identify the next measurement or assessment question, then keep the actual observations beside it.

Separate heat arriving from outside from heat produced inside. Sun reaching a floor through glazing is a radiation question. A warm outdoor surface transferring energy through the enclosure is a heat-transfer question. Cooking, lights, electronics and people can add indoor gains even after the sun has left that room. The same room can experience several of these at once; turning down one source does not establish that the others are small.

An observation log becomes more useful when it names the activity as well as the thermometer reading. Was the oven operating? Did afternoon sun reach the bed or floor? Was the bedroom door closed while the rest of the house was cooler? These details help frame a building or distribution question. They are not a reason to reproduce dangerous indoor heat or delay going somewhere cooler.

Numbers identify the parts explained below.

Solar gainRoom surfacesLater heat release

Learning illustration • see the labels and limits below.

The explanations below remain available as you explore.

1. Outside shade

   Ask which exposure and time of day it addresses; appearance does not establish its effectiveness.

2. Glazing

   Window specifications and exposure explain more than the apparent brightness of a room.

3. Room surfaces

   Materials may store and release heat; a picture cannot quantify that contribution.

What does this illustration leave out?

Orientation, glass properties, actual temperatures, cooling load and health risk require separate evidence. This illustration explains an idea. It is not an installation guide.

A BETTER QUESTION

What should I record to distinguish solar gains, stored heat and cooling distribution in my warm room?

Explore this with HomeAI ↗Opens an editable question. Nothing is sent until you choose to send it.

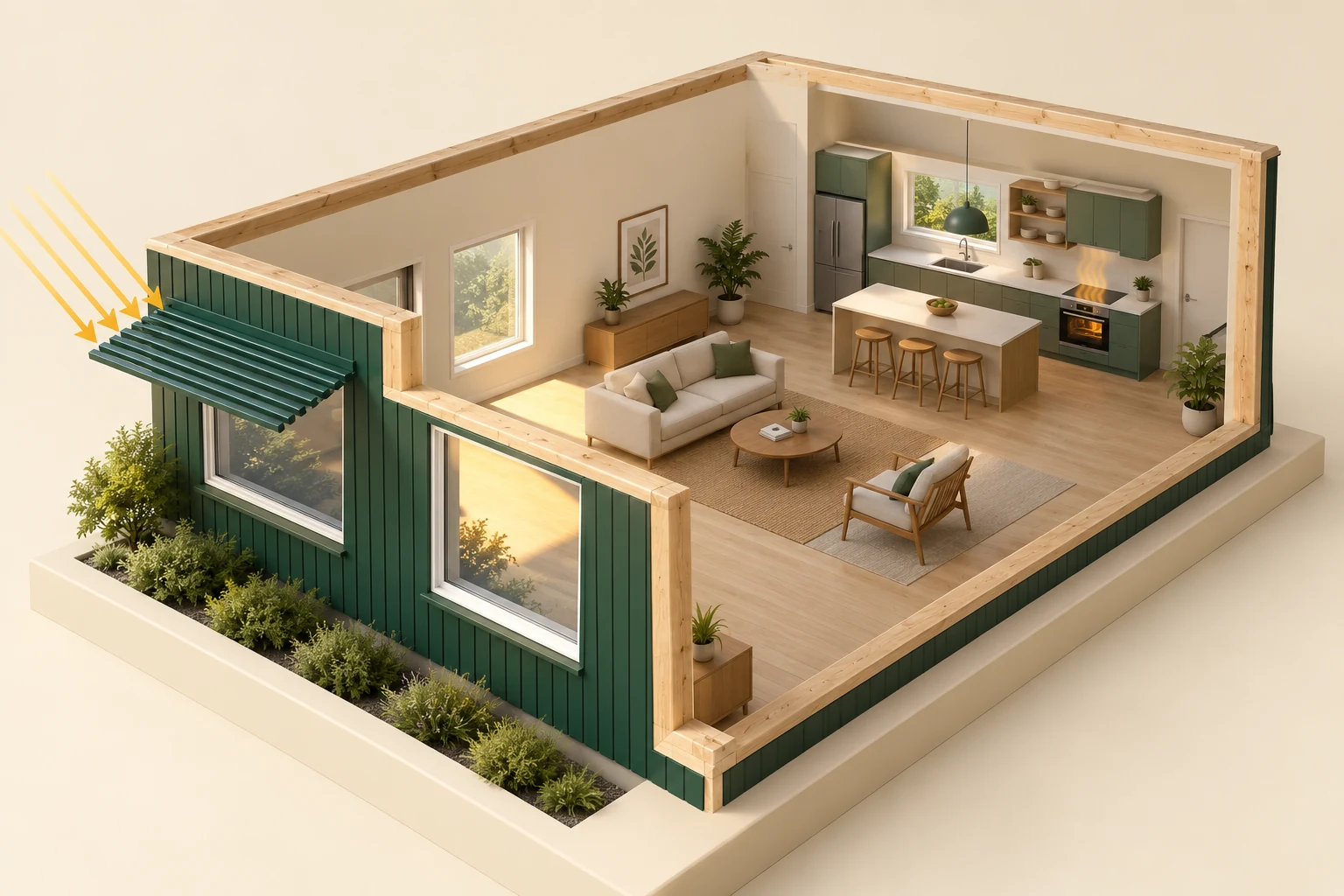

Numbers identify the parts explained below.

Identify sun exposureSeparate indoor gainsRecord the room pattern

Learning illustration • see the labels and limits below.

The explanations below remain available as you explore.

1. Sun stopped outside

   The shade is outside the glass. Ask which actual orientation, hours and seasons it covers; this model supplies no performance percentage or mounting specification.

2. A separate solar input

   The other window admits a sun patch. Glass properties, sun angle and coverage matter; brightness does not measure solar load or temperature-driven heat transfer.

3. Heat made indoors

   Cooking and lighting can add heat even when another opening is shaded. These warm marks do not identify fuel, operation, watts or the cause of an actual overheating complaint.

What does this illustration leave out?

Orientation, hours of sun, glass properties, actual internal gains and room temperatures need their own evidence. The shade form gives no mounting detail, approval or saving percentage; warm marks do not identify equipment fuel or operation. Exposed cut faces are a teaching convention, not an accessible or approved building assembly. This illustration explains an idea. It is not an installation guide.

A BETTER QUESTION

What observations about sun exposure, actual window and shade details, cooking and lighting would help distinguish the heat inputs in my warm room?

Explore this with HomeAI ↗Opens an editable question. Nothing is sent until you choose to send it.

Separate solar gain from conductive heat transfer

Window performance has more than one dimension. NRCan's window guidance distinguishes solar heat-gain characteristics from heat transfer associated with temperature difference. A window can therefore have different implications for summer sun and winter heat loss. Orientation, shading, climate and the whole year's goals matter; one preferred label cannot be assumed to suit every Canadian home.

Observe when sun actually reaches the room and which surfaces receive it. An interior blind may change glare and comfort without answering the same question as a project that intercepts sunlight outside the glazing. Any exterior change also needs its own installation, wind, building and local-rule assessment. Do not improvise attachments at height to test an idea.

Ask a qualified professional how a proposed window or shading option relates to the measured pattern. A brochure's comparative property is useful evidence about the product, while the installed effect depends on the actual opening and conditions. Replacing all windows should not be the automatic response to a warm room without this context.

Read three window properties separately. U-factor describes the heat-transfer performance of the whole window under specified rating conditions; centre-of-glass performance omits the frame and edge. Solar heat-gain coefficient describes the fraction of incident solar energy admitted through the product. Visible transmittance describes visible light. Brightness, winter insulation performance and summer solar admission therefore cannot be reduced to one number or judged by tinted appearance.

An outside shade intercepts sunlight before it reaches the glazing. An inside blind acts after sunlight has reached the window and can change both radiation and glare. Their actual effects depend on the sun angle, coverage, glass and installation; this picture gives no saving percentage. Ask which hours and seasons a proposed shade is intended to address, including whether it preserves wanted daylight and winter gains. A west-room afternoon concern deserves that specific question, rather than an assumption that the same overhang works on every exposure.

If a window film is proposed, ask the window manufacturer and qualified supplier about glass compatibility, thermal stress and warranty implications. NRCan identifies these as separate considerations. A film or low-E description does not replace the complete product information, and a supplier’s solar-control option is not automatically the right annual choice for every Canadian climate.

Numbers identify the parts explained below.

Separate solar inputIdentify product propertiesRecord internal activities

Learning illustration • see the labels and limits below.

The explanations below remain available as you explore.

1. Outside shade

   Interception outside the glazing is a different question from an interior blind. Ask which real exposure, hours and seasons the proposed shade addresses.

2. Window

   Whole-window U-factor, SHGC and visible transmittance describe different product properties. Brightness cannot supply those ratings or demonstrate the installed opening.

3. Indoor equipment

   Cooking, occupants, lighting and electronics can add gains within the home. A depicted lamp or laptop supplies no measured heat contribution.

What does this illustration leave out?

Window ratings, orientation, shade effectiveness, actual gains, surface temperatures and appropriate installation are not established. The attached shade form supplies no anchorage, approval or saving percentage. This illustration explains an idea. It is not an installation guide.

A BETTER QUESTION

Which observations and actual window information distinguish solar gain, temperature-driven heat transfer and indoor gains in my warm room?

Explore this with HomeAI ↗Opens an editable question. Nothing is sent until you choose to send it.

Understand stored heat and delayed cooling

Building materials and furnishings can absorb heat during a warm period and release it later. A room may therefore remain warm after direct sun has moved away. Evening discomfort does not prove that an operating cooling system has suddenly failed; it may raise questions about the day's gains, stored heat, distribution or equipment operation.

Record indoor and outdoor conditions over a relevant period rather than relying on a single hottest reading. Use known device locations and recognise measurement uncertainty. A thermostat in a different room may not represent the bedroom, and a sensor in direct sun may be answering a different question from the surrounding occupied space.

An energy advisor or HVAC professional can use appropriate methods to investigate the building and equipment. Ask which method addresses the intended decision and what it excludes. A room-temperature log can support the assessment, but cannot determine required equipment size or establish the cause of every warm area.

Thermal mass is the ability of accessible building materials to absorb and later release heat. It changes the timing of the room’s response; it does not make the day’s energy disappear. A sunlit tile or concrete surface can continue exchanging heat with the room after direct sunlight ends. How much is stored depends on the material, exposed area, temperature history and contact with the room. A thick surface hidden behind other finishes may interact differently from an exposed one.

A useful cooling plan therefore asks where stored heat can go later. A cooler outdoor period may offer an opportunity for heat removal if a safe, suitable air path is available; a warm night may offer little relief. The historical BC design example illustrates daytime absorption and later release, without establishing a particular night schedule or temperature drop for your home. Adding heavy finishes also needs structural and design review, rather than treating mass as a universal retrofit.

Numbers identify the parts explained below.

Solar gainRoom surfacesLater heat release

Learning illustration • see the labels and limits below.

The explanations below remain available as you explore.

1. Outside shade

   Ask which exposure and time of day it addresses; appearance does not establish its effectiveness.

2. Glazing

   Window specifications and exposure explain more than the apparent brightness of a room.

3. Room surfaces

   Materials may store and release heat; a picture cannot quantify that contribution.

What does this illustration leave out?

Orientation, glass properties, actual temperatures, cooling load and health risk require separate evidence. This illustration explains an idea. It is not an installation guide.

A BETTER QUESTION

What should I record to distinguish solar gains, stored heat and cooling distribution in my warm room?

Explore this with HomeAI ↗Opens an editable question. Nothing is sent until you choose to send it.

Numbers identify the parts explained below.

Daytime inputAbsorption and later releaseA separate removal route

Learning illustration • see the labels and limits below.

The explanations below remain available as you explore.

1. Detached stone-like specimen

   This separate teaching sample introduces material storage. Its appearance does not establish the room’s actual material, exposed mass, heat stored or delay.

2. Sunlit floor

   Incoming energy can be absorbed by room surfaces. Storage changes timing; it does not remove energy or establish a temperature from the picture.

3. Closed window

   Later heat removal depends on actual outdoor conditions and a safe suitable path or cooling system. The closed daylight view establishes no night ventilation or smoke condition.

What does this illustration leave out?

A material shape does not establish thermal mass quantity, heat stored, time delay, room temperature or the effectiveness of overnight cooling. This illustration explains an idea. It is not an installation guide.

A BETTER QUESTION

Why can my room remain warm after direct sun ends, and what would a temperature/activity log establish about stored heat and later cooling?

Explore this with HomeAI ↗Opens an editable question. Nothing is sent until you choose to send it.

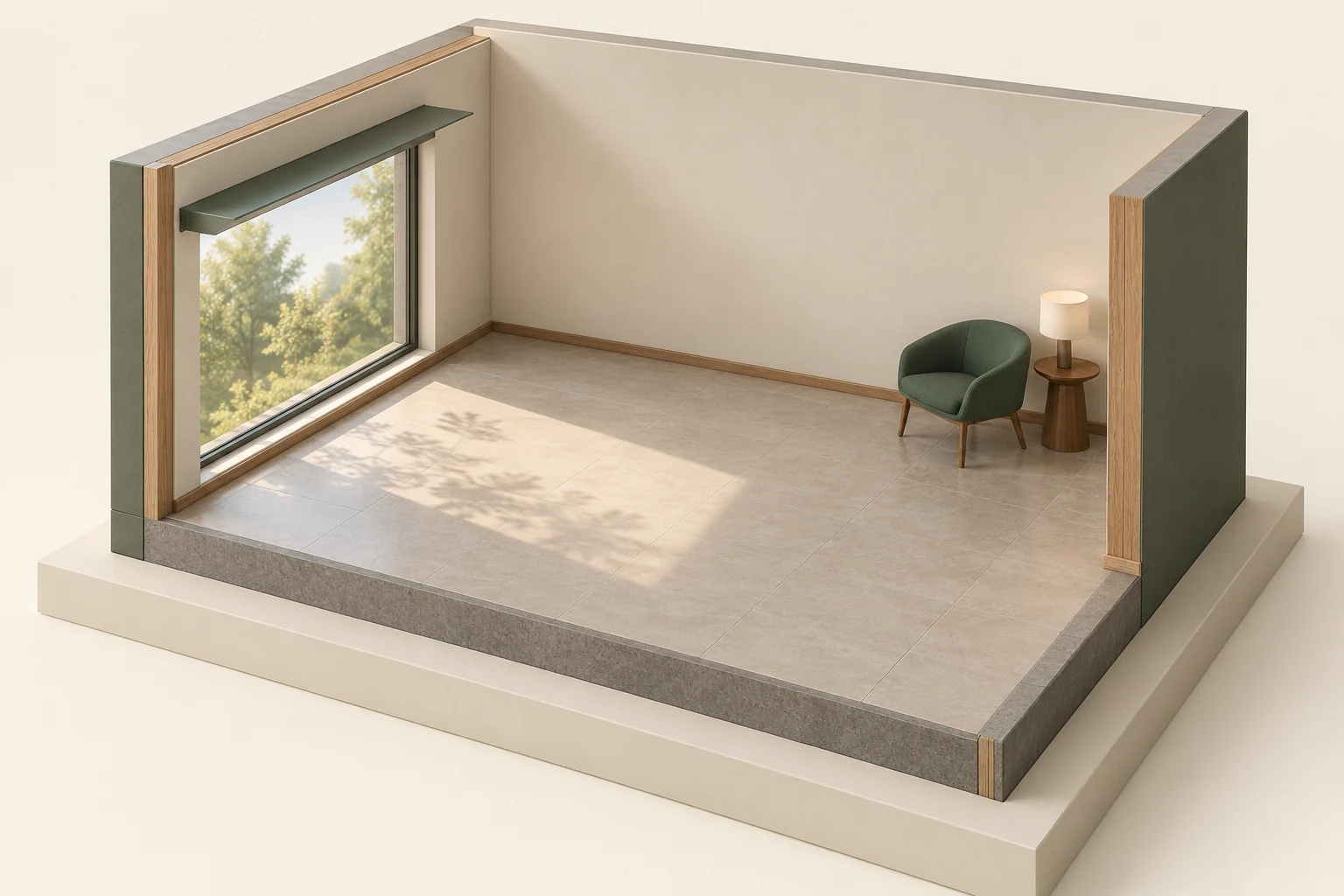

Numbers identify the parts explained below.

Separate the admission routeKeep internal storage inside the boundaryAsk where energy can leave

Learning illustration • see the labels and limits below.

The explanations below remain available as you explore.

1. Closed glazing

   Directly transmitted solar radiation can reach indoor surfaces. Energy absorbed in glazing and released inward is a separate contribution; neither fraction is measured by this specimen.

2. Sunlit floor patch

   Indoor materials can absorb energy and exchange it later. This pale patterned floor and shadow patch provide no material identification, stored quantity, surface temperature, delay or cooling result.

3. Opaque room-side wall

   Heat transfer through an opaque enclosure is a different route from direct sunlight through glass. This indoor face does not show an exterior face radiating straight through the wall or establish the assembly’s actual temperatures.

What does this illustration leave out?

Floor appearance does not identify an installed material or thermal capacity. The front cut edge is a model/display convention, not an approved assembly. The solid blade gives no mounting, exposure coverage or saving percentage. Closed glazing establishes no airflow, product rating or seal performance; the lamp supplies no measured operating gain. Room temperatures, energy shares, stored quantity, exchange duration and actual heat-removal routes remain unknown. This illustration explains an idea. It is not an installation guide.

A BETTER QUESTION

How do direct solar admission, heat transfer through the opaque enclosure, indoor gains and later material exchange fit the room balance, and which actual observations or professional records could distinguish them?

Explore this with HomeAI ↗Opens an editable question. Nothing is sent until you choose to send it.

Use night ventilation only under suitable conditions

Outdoor air can help remove heat when the relevant conditions permit, but opening a window does not guarantee useful cooling. The outdoor temperature, actual airflow route, smoke conditions, security, noise and safe access all matter. Health Canada's heat guidance includes taking advantage of cooler outdoor periods where appropriate; it is not an instruction to leave every home open regardless of conditions.

Check the actual sequence. A cooler night may support a strategy that a hot night cannot. A window open briefly may provide little whole-room heat removal, and a breeze observed at one opening does not measure the rest of the space. Keep the possibility that passive cooling is insufficient rather than blaming the occupant when the weather does not support it.

Do not disable protective features, compromise security or create unsafe fan and cord arrangements to chase airflow. An HRV or ERV serves a ventilation function and is not automatically a night-cooling system. Ask the equipment professional how any ventilation control fits the actual arrangement and current conditions.

Natural air exchange needs a pressure difference and openings connected by a usable path. Wind can push on one side and draw on another; buoyancy depends on indoor–outdoor temperature difference and height. Interior doors, sheltered exposures and the available opening area affect the route. Two visible windows do not prove cross-ventilation, and opening a high window while outdoor air is warmer than a cooled interior can admit additional heat rather than remove it.

Distinguish a room fan recirculating indoor air from outside-air ventilation and from mechanical cooling. An HRV or ERV may reduce the energy penalty of ventilation through recovery, while its controls and configured routes determine actual operation. Recovery equipment is not automatically a cooling appliance or a suitable night-purge control. Ask the HVAC provider how the identified system handles the conditions in your own home.

Numbers identify the parts explained below.

Check conditionsAssess usable airflowKeep a heat plan

Learning illustration • see the labels and limits below.

The explanations below remain available as you explore.

1. Outdoor conditions

   Compare actual outdoor temperature and smoke conditions before considering natural airflow.

2. Window and access

   Ask whether the actual window can be opened safely and supports a usable air route. Security, fall protection, screens and wind matter; this picture cannot establish airflow.

3. Stored heat

   Indoor warmth can continue after the sun disappears. Mechanical cooling or a cooler place may still be needed.

What does this illustration leave out?

A cool-looking sky does not establish cooler outdoor air, clean air, safe access or enough cooling. This illustration explains an idea. It is not an installation guide.

A BETTER QUESTION

When is a cooler-night ventilation strategy unsuitable for my home, and what is my alternative during heat or smoke?

Explore this with HomeAI ↗Opens an editable question. Nothing is sent until you choose to send it.

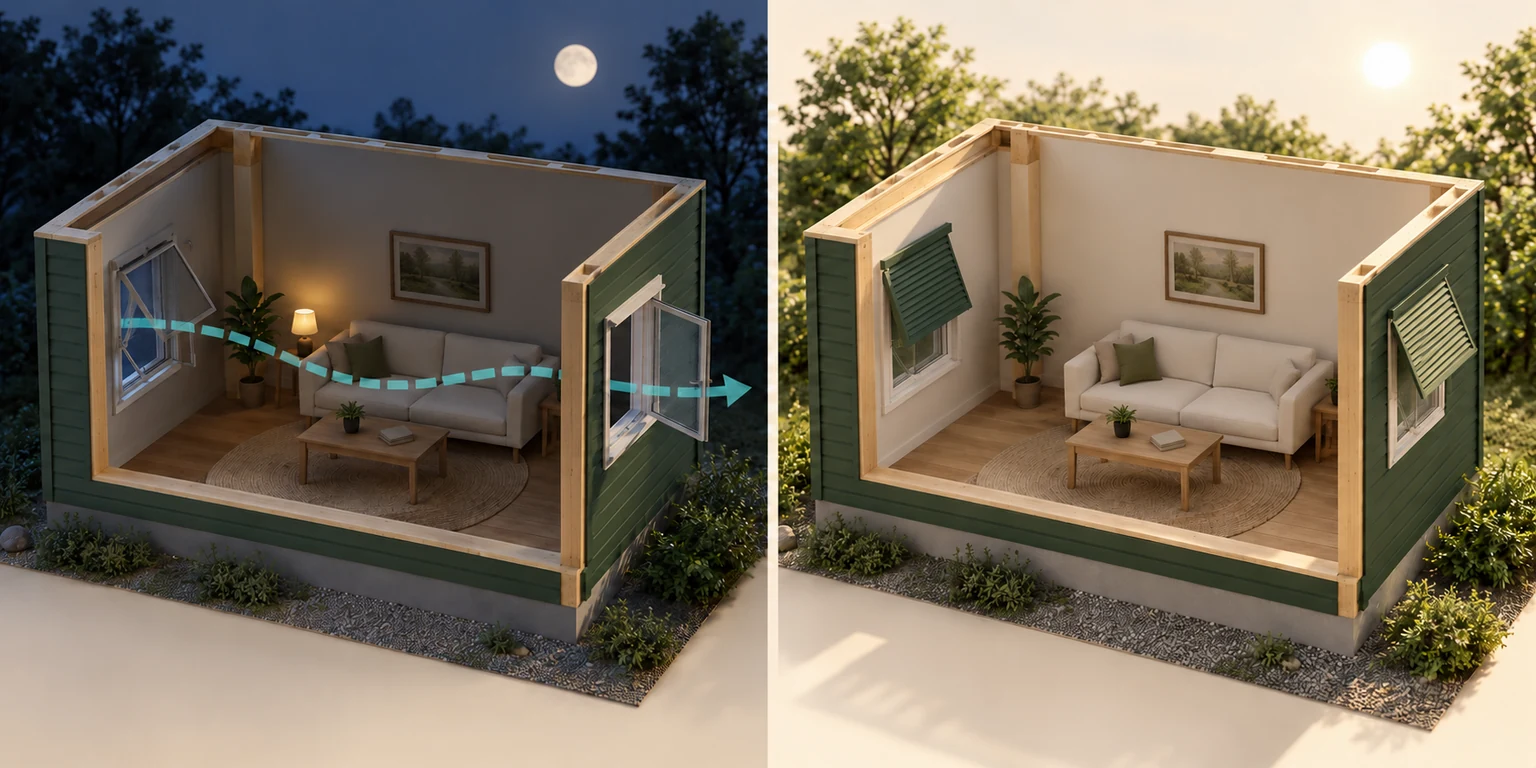

Numbers identify the parts explained below.

Check actual conditionsAssess a suitable air routeKeep a cooling alternative

Learning illustration • see the labels and limits below.

The explanations below remain available as you explore.

1. A conditional opening

   Opening a window depends on actual outdoor temperature, air quality, safe access and security. Night, screens and pictured hardware do not establish those conditions or permissions for a real home.

2. A possible exchange path

   The dashed line links two open windows as a conceptual wind-driven possibility. Direction, amount and room coverage depend on actual openings and pressure conditions; this is not a measured or simulated airflow result.

3. Closed and shaded daytime

   Closed panes interrupt the illustrated intentional window-air route; exterior shade can reduce solar input. Neither removes stored or internal heat or certifies a safe room. Keep a suitable cooler-place option in the heat and smoke plan.

What does this illustration leave out?

Actual outdoor and indoor temperatures, smoke, wind, opening safety, permissions, security and usable airflow remain unknown. Screens and hardware do not certify safe access or fall protection. The arrow is a possible relationship, not an airflow simulation; closed daytime windows do not certify a safe room or remove stored and internal heat. A suitable cooler or cleaner space may still be needed. This illustration explains an idea. It is not an installation guide.

A BETTER QUESTION

When could a cooler-night window route help my home, what temperature, smoke and safe-opening conditions would make it unsuitable, and what cooling alternative should I plan?

Explore this with HomeAI ↗Opens an editable question. Nothing is sent until you choose to send it.

Distinguish moving air from removing room heat

A fan moves air and can affect how a person exchanges heat with the surroundings. It does not provide the same room heat removal as an air conditioner. Extreme conditions and individual vulnerability can limit reliance on a fan alone. Follow public-health advice and individual healthcare guidance rather than treating perceived breeze as proof that the room is suitable.

Mechanical cooling also needs a complete route: appropriate equipment, distribution, controls and a building context. A functioning outdoor unit does not establish delivery to every occupied room. Likewise, a warm bedroom does not identify a refrigerant, duct or sizing fault. Preserve the operating pattern and ask for a qualified assessment of the relevant system.

If cooling equipment is being selected, request a professional explanation of the assumptions and scope. Do not estimate a required capacity from floor area alone or accept a household log as a complete design calculation. A larger unit is not an evidence-based remedy until the actual decision has been assessed.

A person and the room have different heat balances. Air movement around someone can change their heat exchange and feel helpful even when the room thermometer does not fall. A fan circulating the same indoor air supplies no outside heat-removal route by itself. Health Canada’s current heat guidance also warns that fan comfort has limits in extreme conditions. Perceived breeze should not replace a heat-relief plan.

For a buyer or new-build household, the practical question is which occupied room can actually provide reliable heat relief and under which operating conditions that was demonstrated. Ask what cooling equipment is included, which rooms it serves, what distribution and controls were assessed, and what could not be checked in winter. Keep that specific handover answer separate from a claim that every room or future heat event has already been covered.

Numbers identify the parts explained below.

Personal air movementIdentify actual coolingVerify room-level scope

Learning illustration • see the labels and limits below.

The explanations below remain available as you explore.

1. Guarded fan

   Air movement near a person can affect comfort. Recirculating the same room air alone does not supply outside heat removal. Follow current heat guidance and keep a relief plan.

2. Closed equipment

   Identify the actual system, served rooms, controls and commissioning information before claiming it cools this room. This unlabelled specimen establishes none of those.

3. Room boundary

   Outside-air ventilation, recirculation and mechanical cooling are different functions. Smoke, outdoor temperature, safe opening access and the available route affect the ventilation question.

What does this illustration leave out?

Shape does not identify the cabinet, prove airflow, establish cooling capacity or show an external heat-removal route. No safe indoor temperature is determined. This illustration explains an idea. It is not an installation guide.

A BETTER QUESTION

What distinguishes fan comfort, outside-air ventilation and reliable cooling in this room, and what should a buyer request when summer operation was not demonstrated?

Explore this with HomeAI ↗Opens an editable question. Nothing is sent until you choose to send it.

Treat heat and smoke as a combined constraint

A strategy based on open windows can become unsuitable during wildfire smoke, while closing the home can leave insufficient passive cooling. BCCDC's combined guidance emphasises staying cool and seeking cooler, cleaner space when necessary. A resilient household plan includes an alternative location rather than expecting one window or filter setting to resolve both problems.

Identify cooling access, transport and practical household needs before an event. Check current local notices instead of assuming yesterday's information still applies. If the home becomes unsuitable, a plan to go elsewhere is an active response, not a failure of home maintenance. Individual medical concerns belong with the relevant healthcare professional.

Particle filtration does not remove all gases or resolve faulty combustion. Do not use outdoor fuel-burning equipment indoors for power or cooling. For an active CO alarm, leave immediately and call emergency services from outside. No passive-cooling experiment should delay an immediate hazard response.

Health Canada prioritizes keeping cool when extreme heat and wildfire smoke coincide. Closing windows as much as practical to reduce smoke entry must not turn into remaining in a dangerously hot room. The combined guidance identifies local cooling centres or cleaner-air spaces when the home cannot provide adequate relief. Plan how the household would reach that space, and follow current local health directions and urgent symptom guidance. A particle filter does not solve the heat-removal problem.

Numbers identify the parts explained below.

Site conditionsBuilding responseSpecific evidence

Learning illustration • see the labels and limits below.

The explanations below remain available as you explore.

1. Weather-facing roof

   Observe safely from accessible ground; do not infer a cause from one mark.

2. Room equipment

   Confirm what the device does and the scope of its performance information.

3. Ground connection

   Site and buried conditions differ from the visible room.

What does this illustration leave out?

Exposure, airflow, filtration, moisture, foundation condition and parcel risk require specific evidence. This illustration explains an idea. It is not an installation guide.

A BETTER QUESTION

How do I separate observations about the room, equipment and site before choosing a specialist scope?

Explore this with HomeAI ↗Opens an editable question. Nothing is sent until you choose to send it.

Work through a fictional west-room comparison

A fictional owner records a bedroom becoming warm late in the day, then remaining warm overnight. They have a new interior blind and a portable fan, but no cooling assessment. One cooler afternoon after the blind is fitted seems promising. The observation alone cannot separate the blind's effect from that day's outdoor conditions and different household use.

The owner keeps a contextual log and asks an advisor to discuss solar exposure, stored heat and practical cooling options. They check whether a safe cooler-night strategy is available and identify an alternative during hot, smoky conditions. They do not conclude that window replacement is required or that the fan makes the room safe for every occupant.

If a scoped assessment later identifies a specific improvement, the record should retain its assumptions and expected limits. A passive measure may help under some conditions while mechanical cooling or a cooler location remains necessary during an extreme event. The worked example values a plan that acknowledges limits instead of promising one permanent comfort solution.

Build an annual decision rather than a summer guess

Keep temperature observations, equipment instructions, service findings, window information and any project assessment together. Describe a result by the conditions in which it was observed. Summer comfort, winter heat loss and moisture performance can interact; changing an envelope component needs a broader explanation than a single hot-day complaint.

Write purposeful next tasks: confirm a sensor location, identify available shading records, request a cooling assessment, or verify a practical cooler-place plan. A Home Plan status records evidence or an action, not a heat-safety certificate. Missing records do not automatically require every equipment test or a complete replacement project. When comparing options, ask which observation would show a meaningful improvement and under what weather and operating conditions that comparison would be valid.

Canadian climate, housing type, outdoor-air conditions and household needs vary. A strategy effective in one dry, cool-night climate may have different limits elsewhere. A qualified professional can assess the building and equipment choices, while current public-health advice governs heat response. HomeAI can help connect those questions without prescribing a universal temperature threshold or guaranteeing comfort.

Go to the source.

Original HomeAI explanation informed by these public references. Sources support the underlying guidance; they have not reviewed or endorsed HomeAI. Diagrams are conceptual, and calculator outputs depend on your inputs.

• Health Canada · Protecting yourself during extreme heat
• Natural Resources Canada · Windows and exterior doors
• Natural Resources Canada · How your house works
• Natural Resources Canada · Operating heating and ventilation
• Health Canada · Ventilation and the indoor environment
• BCCDC · Wildfire smoke and staying cool
• Health Canada · Preventing carbon-monoxide exposure
• Natural Resources Canada · Window ratings and solar gain
  Where this reference applies

  Jurisdiction: Canada; general window education

  Section 8.1.3–4 and8.1.11–12: U-factor, SHGC, visible transmittance, shading/film tradeoffs and reverse-stack mechanism. Numerical rules of thumb are not a specification for an individual home.

• Natural Resources Canada · Heat, air and moisture mechanisms
  Where this reference applies

  Jurisdiction: Canada; building-science education

  Sections 2.1.2–7 and 2.2.1–2: heat transfer, airflow/pressure, moisture transport, condensation, system interactions and effective thermal resistance. Source examples are not an approved assembly or a property diagnosis.

• Health Canada · Keeping a home cool during extreme heat
  Where this reference applies

  Jurisdiction: Canada; public-health guidance

  Prepare for heat; keep home cool; extremely hot home and heat-emergency response. Household choices and fan limits do not establish a universally safe indoor temperature.

• Health Canada · Natural airflow and ventilation distinctions
  Where this reference applies

  Jurisdiction: Canada; detached/duplex/row-house background with individual equipment

  Edition: March 2018 technical background; page details 2018-04-19

  Natural ventilation, HRV/ERV mechanisms, controls, room distribution and seasonal/outdoor-pollutant context. Historical code references, generic settings and rates are not current installation instructions.

• BC Housing / FPInnovations · Thermal mass and natural cooling (historical design education)
  Where this reference applies

  Jurisdiction: British Columbia; historical design education

  Edition: Pathways to High-Performance Housing in British Columbia, SP-56; completion 2013–14; PDF created 2014 and modified 2018

  Printed page 32, PDF page 42, Figure 3-8 and section 3.3.2.2: stored heat, shading and pressure-driven airflow. Numerical overhang ratios, airflow speeds, temperatures, humidity conditions and solar-contribution percentages are excluded.

• Health Canada · Combined wildfire smoke and extreme heat
  Where this reference applies

  Jurisdiction: Canada; public-health guidance

  Edition: 2024; H144-126/2024E-PDF; 6 PDF pages

  Entire 6-page public PDF, especially pages 5–6: prioritize keeping cool, qualified equipment/filtration choices, cooler/cleaner public spaces and urgent symptom response. No filter guarantees clean air or a safe room temperature.

• NRC · Direct and absorbed window solar gain (historical mechanism)
  Where this reference applies

  Jurisdiction: Canadian research; historical mechanism education

  Edition: Construction Technology Update 71; original September 2008; repository wrapper 2008-12-01

  Source reviewed: 2026-10-03 · UTC

  Complete nine-page original and full extraction retained. Consequential mechanism reread: printed page 3 / PDF page 4, SHGC sidebar, directly transmitted solar radiation plus absorbed solar subsequently released inward. Historical CCHT energy fractions, costs, modelled locations, window rankings and ENERGY STAR criteria are excluded. This is neither a current requirement nor a property performance prediction.

• NRC · Storage, gains/losses and temperature over time (historical mechanism)
  Where this reference applies

  Jurisdiction: Canada; historical modelling mechanism education

  Edition: D. M. Sander, 1983 CIB proceedings, pages 201–212; repository-created 2023 is not publication

  Source reviewed: 2026-10-03 · UTC

  Complete fifteen-page original and full extraction retained. Consequential mechanism reread: printed page 205 / PDF page 8, nonsteady storage, solar-warmed exterior surfaces, internal schedules, and temperature variation when gains exceed or fall below losses. No equation is transplanted to a house, no equipment capacity is derived, and no current design or code method is adopted.
